GPUStack in Kalavai

Create, manage and deploy LLMs across multiple devices with GPUStack in Kalavai.

What is GPUStack?

GPUStack is an open-source system for managing GPU scheduling and sharing across workloads. Kalavai offers managed GPUStack clusters that automatically allocate resources to the GPUStack pool.

Platform features:

  • Create GPUStack clusters with mix hardware (NVIDIA, AMD) without dealing with infrastructure
  • Highly configurable (number of GPUs, node capabilities)
  • Flexible and affordable access to thousands of data centre-level GPUs

Getting Started

Log in to your Kalavai account and navigate to the Clusters page. This section allows you to create, manage and connect to your GPU clusters.

Clusters page

As long as you are within your resource quota (as indicated under Available Resources) you can create as many clusters as you need --even multiple of the same type. You can create a cluster by selecting any of the supported templates (growing!) under the Create new Cluster section.

Create a GPUStack cluster

Select `GPUStack` Cluster on the list of cluster templates to configure your GPUStack cluster.

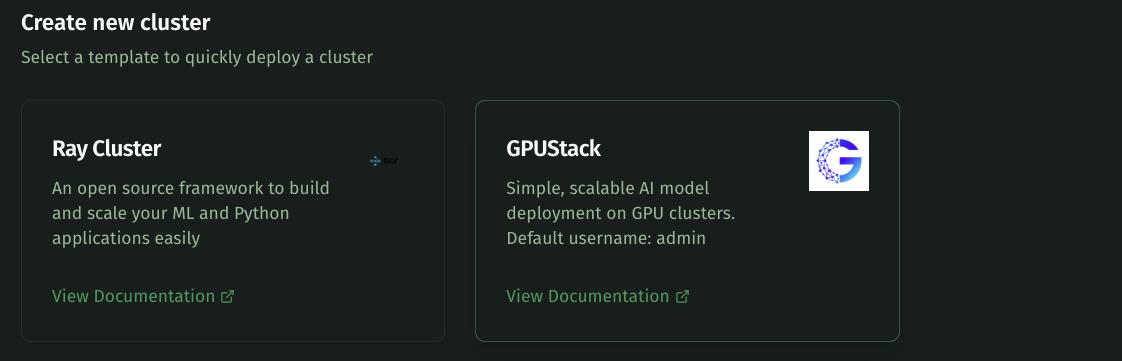

Create gpustack cluster

Configuring your GPUStack cluster

The GPUStack template allows you to configure your cluster instance to your needs.

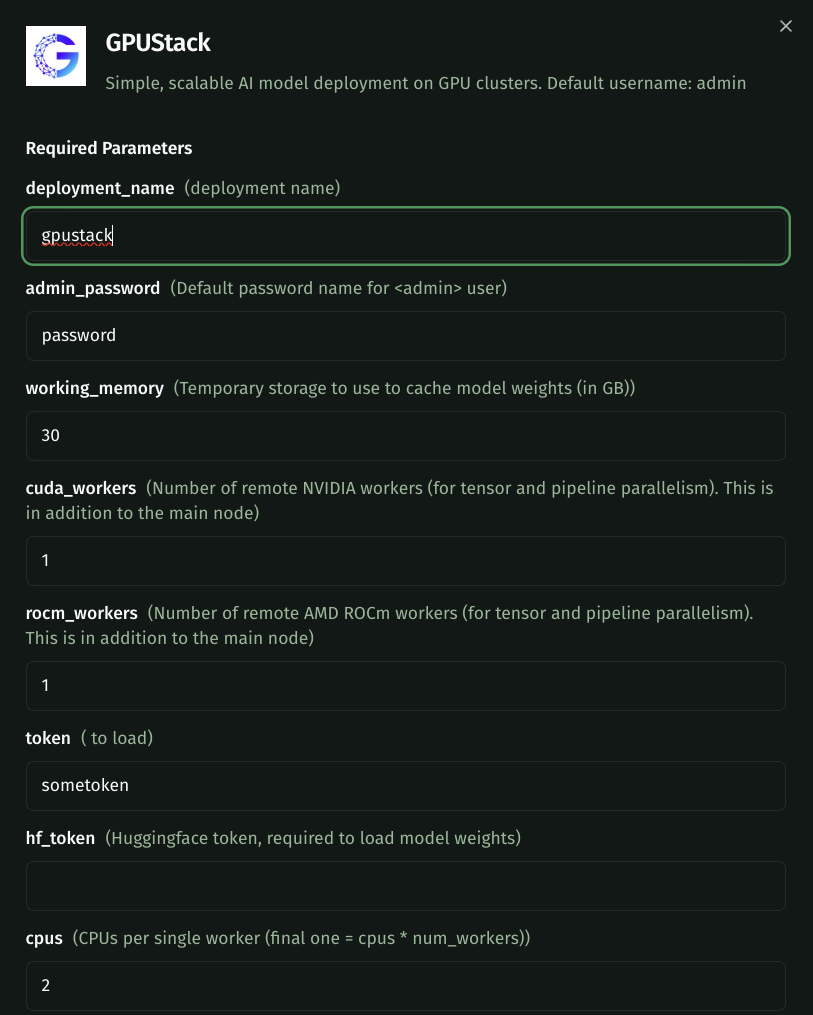

GPUStack template config options

Here's a list of key parameters:

  • admin_password (default: "password", required): Default password for the admin user (required to login to the UI)
  • working_memory (default: 30, optional): Temporary storage (in GB) to cache model weights.
  • nvidia_gpus (default: 1, required): Number of NVIDIA GPUs. Each GPU is a separate worker machine.
  • amd_gpus (default: 1, required): Number of AMD GPUs. Each GPU is a separate worker machine.
  • token (default: "sometoken", required): Token used to load the cluster or authenticate access.
  • hf_token (default: null, required): Huggingface token, required to load model weights.
  • cpus (default: 2, optional): CPUs per worker (final count = cpus * workers).
  • memory (default: 8, optional): RAM memory per single worker (final count = memory * workers)

When you are ready, click on Deploy Cluster. The GPUStack instance may take a few minutes to spin up. Check the status of the pool under Your clusters. Note that the cluster will be ready for access as soon as the head node is ready. Workers may be queued up to join based on the number and types requested.

Example: Hybrid GPU cluster

GPUStack lets you connect heterogeneous GPU devices to a single instance. For instance, you may connect 4 NVIDIA GPUs and 8 AMD GPUs with the following settings:

  • nvidia_gpus: 4
  • amd_gpus: 2

When you deploy models in the GPUStack interface you can target either of the GPUs or do distributed deployments across multiple devices.

Connecting to your cluster

Once the status of the cluster is Ready you are ready to put the instance to work. Each GPUStack cluster exposes a single endpoint for you to connect to the UI interface.

Click on the UI endpoint of your GPUStack cluster. You will be presented with the login screen. Use the following default credentials:

  • Username: admin
  • Password: <password set during cluster config>

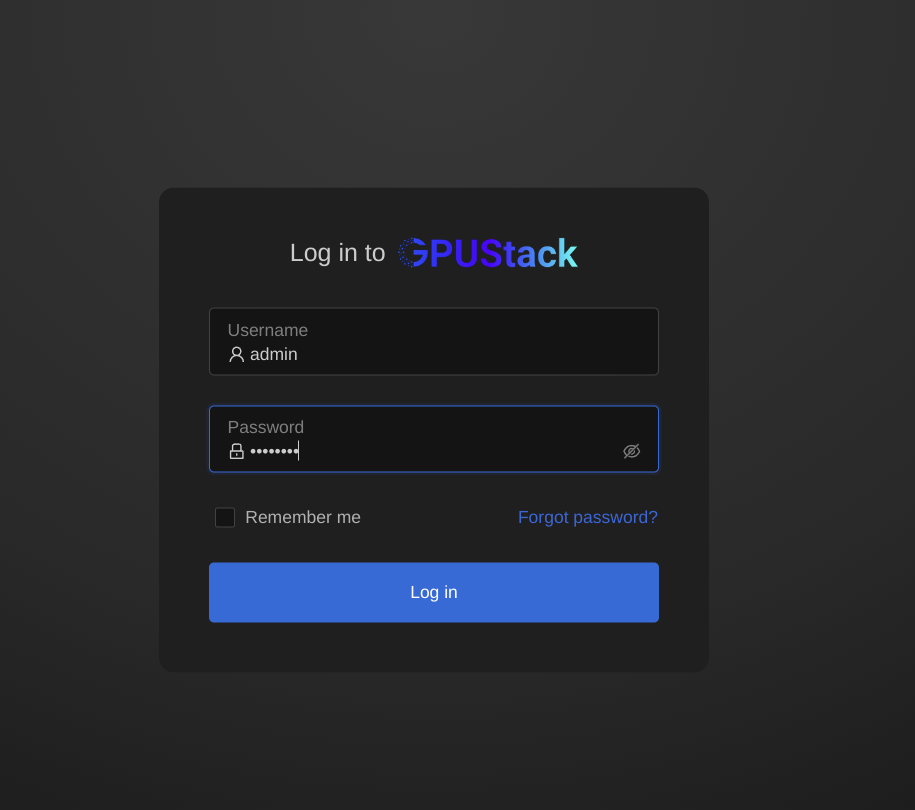

GPUStack login

You can monitor the status of the workers and GPUs under the Resources section of your GPUStack cluster.

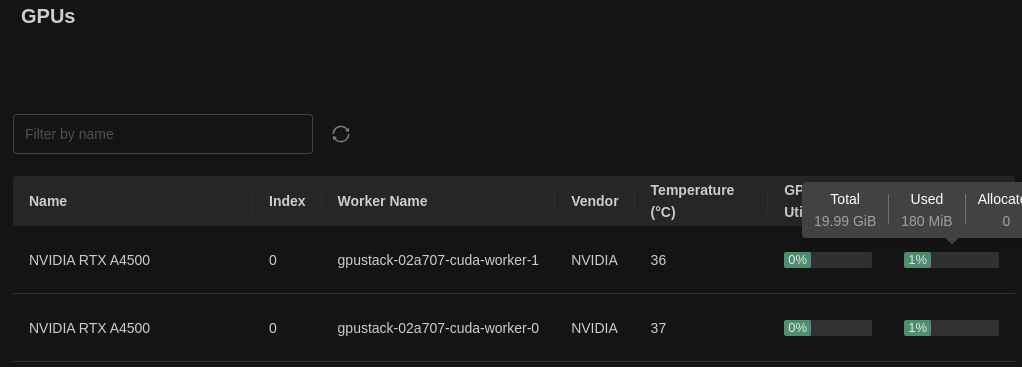

GPUStack with 2 GPU workers

Deploy a model

Follow the official examples from GPUStack to deploy models and more.

One of the most interesting features of GPUStack is it's ability to deploy models that don't fit in a single GPU. In this example, I have a GPUStack with 2 GPUs (RTX A4500 with 20GB vRAM each), and I want to deploy Qwen3 8B, which requires approximately 32GB of vRAM. Note: you will need at least ~40GB of working memory in the cluster to accommodate for the model weights

Navigate to Deployments, then Deploy Model, and select Catalog. This is the easiest way to select models and quantizations. Search the catalog for Qwen3 8B, and choose the following options:

  • Backend: llama-box
  • Size: 8B
  • Quantization: Q8_0

Click Save to deploy. The model will take a few minutes to be able to serve inference requests. You can follow the progress in the Deployments page:

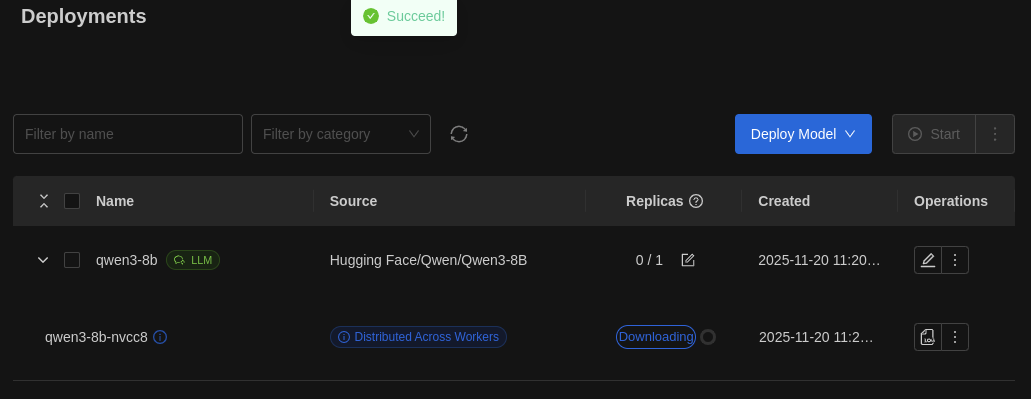

GPUStack deployment status

Once it is ready, you can interact with it in the Chat page. You can also check out a code snippet example in the same page by clicking on the View Code button at the top.

Known issue: there seems to be an issue with using vLLM backend on distributed (multiple GPUs) deployments that leads to instances hanging after the weights have been downloaded. Please use llama-box backend instead.

What next

GPUStack documentation
